DESCRIPTION

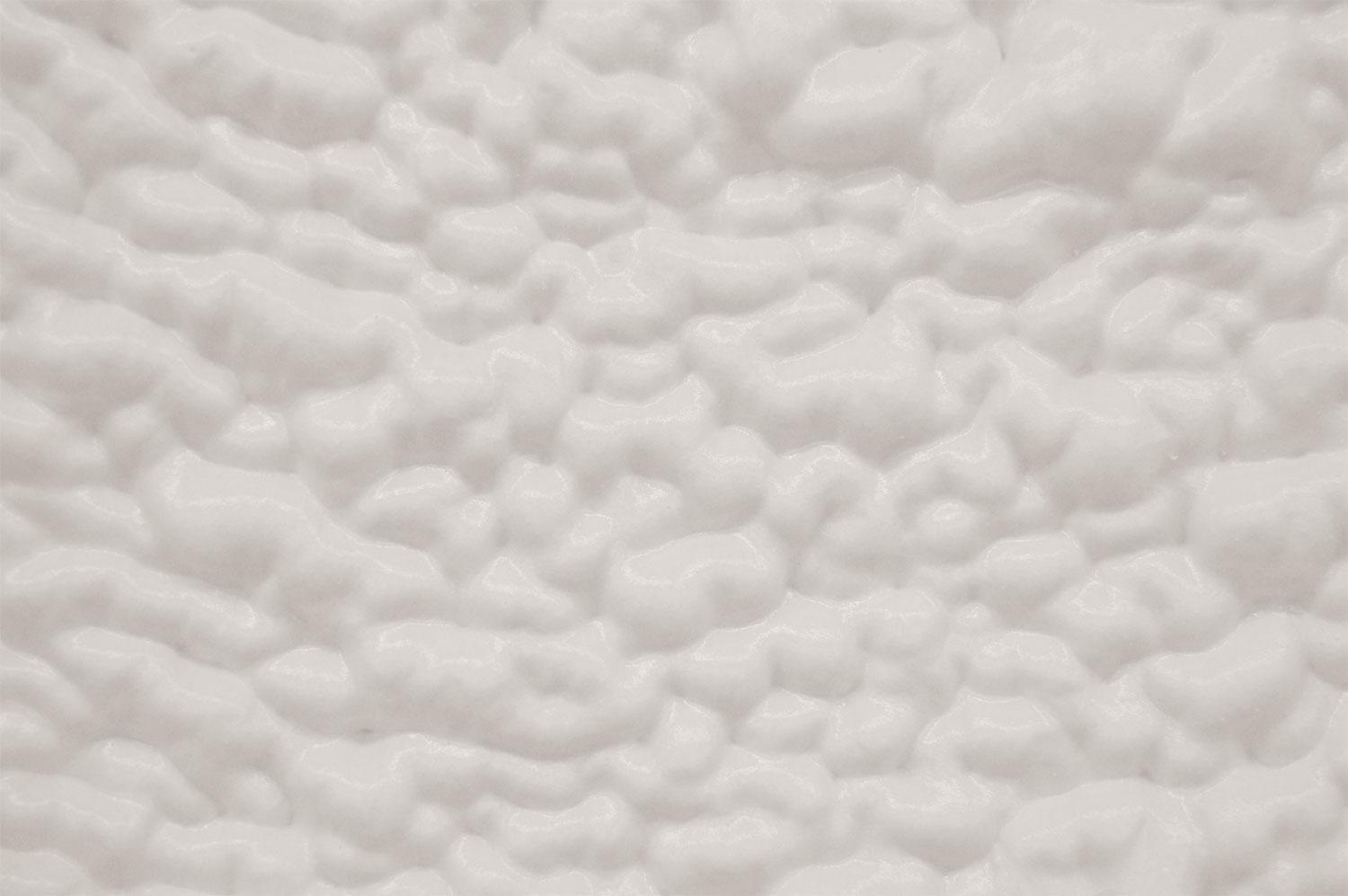

ThermalGuard CC2 is a closed cell, 245fa – HFC blown spray polyurethane foam (SPF) insulation that achieves exceptional yield and adhesion in a wide range of ambient conditions and applications. When applied, ThermalGuard CC2 expands to 25 times its size in approximately 12 seconds to seal and insulate. It can safely be applied in lift thickness of up to 2 inches in a single pass with excellent control and a smooth finish.

ThermalGuard CC2 HY1 is a closed cell, fast-set SPF insulation, and is designed for use in commercial, industrial and metal buildings.  This product is applied as a liquid, and expands to fill and seal building cavities of any shape and size. Recommended thickness of spray should be no more than 1.5″ per pass.  This foam is ideal for post frame buildings, horse and pole barns, greenhouses/hot houses and steel truss buildings.

ThermalGuard CC2 ECO is a 2-lb closed cell, SPF insulation that utilizes an HFO (hydrofluoroolefin) blowing agent. This HFO blowing agent features a Global Warming Potential (GWP) of just 1, which is nearly 1000 times less than the hydrofluorocarbon blowing agents that are the current industry standard, while still delivering the performance that contractors demand.

All 2-lbs ThermalGuard products are designed for use in wall, attic, and roof deck applications where they insulate, air-seal and add structural strength. They are also suitable for a tank and pipeline insulation and as a below-grade exterior insulation for foundation walls or slabs.

KEY BENEFITS

  • Adheres to Virtually Any Surface
  • Adds Structural Support
  • Seals & Insulates in One Step
  • Great for Insulating Hard-to-Reach Areas
  • Applied with 245fa or Zero Ozone-Depleting blowing agent
  • Saves up to 50% on Heating & Cooling Costs

2

Density

6.7+

R-value

45-0
Tensile Strength (PSI)
25-0
Compressive Strength (PSI)
0
(TG CC2) Water Vapor Permeability (PERM)
0
(TG CC2) Air Leakage (L/S/M2 @ 75 PA @ 3.5″)
Class 0
Fire Rating
0
Flame Spread Index
0
Smoke Development Index
